Mission Darkness Blockbox Touch Pro
Click to enlarge
Magnet Forensics

Mission Darkness Blockbox Touch Pro

Descripción

MODULAR AND FOLDABLE FARADAY ENCLOSURE FOR LABORATORY, WITH DOUBLE GLOVE AND MULTI-PORT FILTER

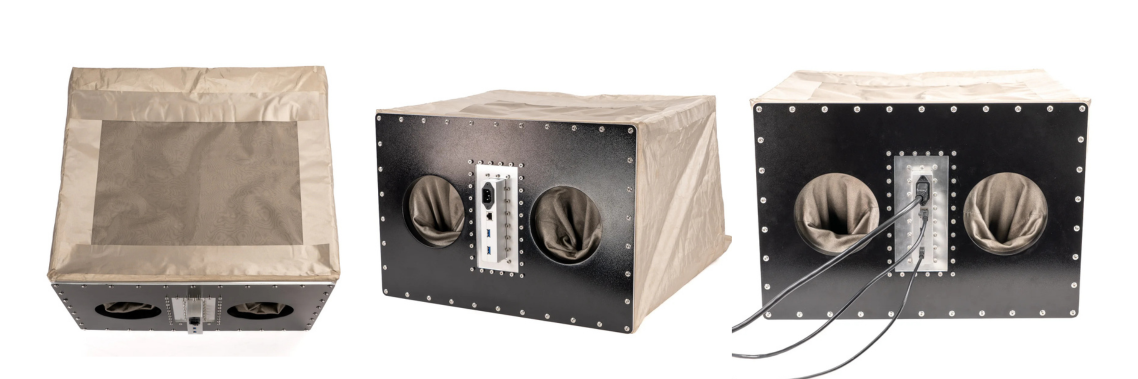

The Mission Darkness™ BlockBox Touch Pro is an innovative, modular, foldable, and portable analysis booth for mobile devices. It includes a patented aluminum glove-mounting plate with two integrated replaceable conductive gloves, a shielded filter (USB or multi-port), device display window, extra-large interior space, and a replaceable Faraday enclosure. Together, these features allow the operator to access and extract data in the field, in addition to connecting the devices to a charging source.

Specifically designed for forensic investigators in police and military forces, the BlockBox Touch Pro allows operating devices ranging from cell phones to laptops, performing triage, analysis, and data extraction while maintaining an internal environment isolated from RF signals.

Thanks to the high-speed filter, time-sensitive data can be extracted in hours rather than days. In addition, the ability to keep devices charged indefinitely avoids lock mode and reduces the time needed to crack access codes, allowing maximization of data extraction and unlocking with tools such as GrayKey, Cellebrite, XRY, BlackBag, Oxygen, among others.

The replaceable enclosure of the BlockBox Touch Pro is built with two layers of high-shielding TitanRF™ Faraday fabric, plus a patent-pending RFMagLink™ magnetic closure system and foldable carbon-fiber structural walls with friction hinges, which keep the booth firmly open during use.

What differentiates this product from other analysis booths is its ability to replace components independently by the user, including the conductive gloves, the shielded filter, the carbon-fiber structural walls, and the Faraday enclosure.

The BlockBox Touch Pro uses a unique "seamless, stitch-free construction" ("non-stitch seamless construction") method, designed to ensure that the RF shielding is not compromised at any junction point.

This user-repairable modular system extends the product's lifespan in case of wear, punctures, contamination, or damage to the unit.

The RFMagLink™ closure system of the Faraday chamber allows the booth to be easily opened and closed via a multilayer magnetic seal that keeps the closure secure at all times.

This type of closure is especially valued in forensic applications because it significantly increases the product's durability, compared to Faraday booths that use Velcro closures, which can damage the conductive gloves and wear out quickly due to frequent use and the force required to open them.

The Faraday chamber blocks all wireless signals, including:

  • WiFi (2.4 and 5 GHz)

  • Bluetooth

  • Cellular signals, including 5G networks

  • GPS

  • RFID

  • NFC

  • Radio signals from low MHz frequencies up to 40 GHz

The kit includes:

  • One additional replaceable Faraday enclosure

  • One set of spare conductive gloves

  • Two sets of high-quality cables

  • One signal-dampening foam block (which provides padded support and greater shielding in high-signal-intensity environments)

  • Two stylus pens

  • One manual tool for replacing components

  • One padded case for transporting accessories and the folded BlockBox Touch Pro

Thanks to its lightweight and portable design, this kit can be easily transported, becoming the ideal solution both for laboratory operations and for field work.

La carcasa reemplazable del BlockBox Touch Pro está construida con dos capas de tela Faraday TitanRF™ de alto blindaje, además de un sistema de cierre magnético RFMagLink™ pendiente de patente y paredes estructurales plegables de fibra de carbono con bisagras de fricción, que mantienen la cabina firmemente abierta durante su uso.

Lo que diferencia a este producto de otras cabinas de análisis es su capacidad de reemplazar componentes de forma independiente por el propio usuario, incluyendo los guantes conductivos, el filtro blindado, las paredes estructurales de fibra de carbono y la carcasa Faraday.

El BlockBox Touch Pro utiliza un exclusivo método de ensamblaje “sin costuras ni costuras cosidas” (“non-stitch seamless construction”), diseñado para garantizar que el blindaje RF no se vea comprometido en ningún punto de unión.

Este sistema modular y reparable por el usuario prolonga la vida útil del producto en caso de desgaste, perforaciones, contaminación o daños en la unidad.

El sistema de cierre RFMagLink™ de la cámara Faraday permite abrir y cerrar la cabina fácilmente mediante un sello magnético multicapa que mantiene el cierre seguro en todo momento.

Este tipo de cierre es especialmente valorado en aplicaciones forenses porque aumenta significativamente la durabilidad del producto, en comparación con cabinas Faraday que utilizan cierres de Velcro, los cuales pueden dañar los guantes conductivos y desgastarse rápidamente debido al uso frecuente y la fuerza necesaria para abrirlos.

La cámara Faraday bloquea todas las señales inalámbricas, incluyendo:

  • WiFi (2.4 y 5 GHz)

  • Bluetooth

  • Señales celulares, incluidas redes 5G

  • GPS

  • RFID

  • NFC

  • Señales de radio desde bajas frecuencias MHz hasta 40 GHz

El kit incluye:

  • Una carcasa Faraday reemplazable adicional

  • Un juego de guantes conductivos de repuesto

  • Dos sets de cables de alta calidad

  • Un bloque de espuma amortiguadora de señal (que proporciona soporte acolchado y mayor blindaje en entornos de alta intensidad de señal)

  • Dos lápices stylus

  • Una herramienta manual para reemplazar componentes

  • Un estuche acolchado para transportar accesorios y el BlockBox Touch Pro plegado

Gracias a su diseño liviano y portátil, este kit puede transportarse fácilmente, convirtiéndose en la solución ideal tanto para operaciones de laboratorio como de trabajo en terreno.
